Web-Enabled Edge PLC

IntelliKran PLC

IntelliKran is a sophisticated web-enabled edge PLC designed for safe and efficient crane and machinery operation. It combines edge computation, real-time monitoring, secure remote access, and detailed operational data management in one industrial platform.

Request a QuoteView All Products

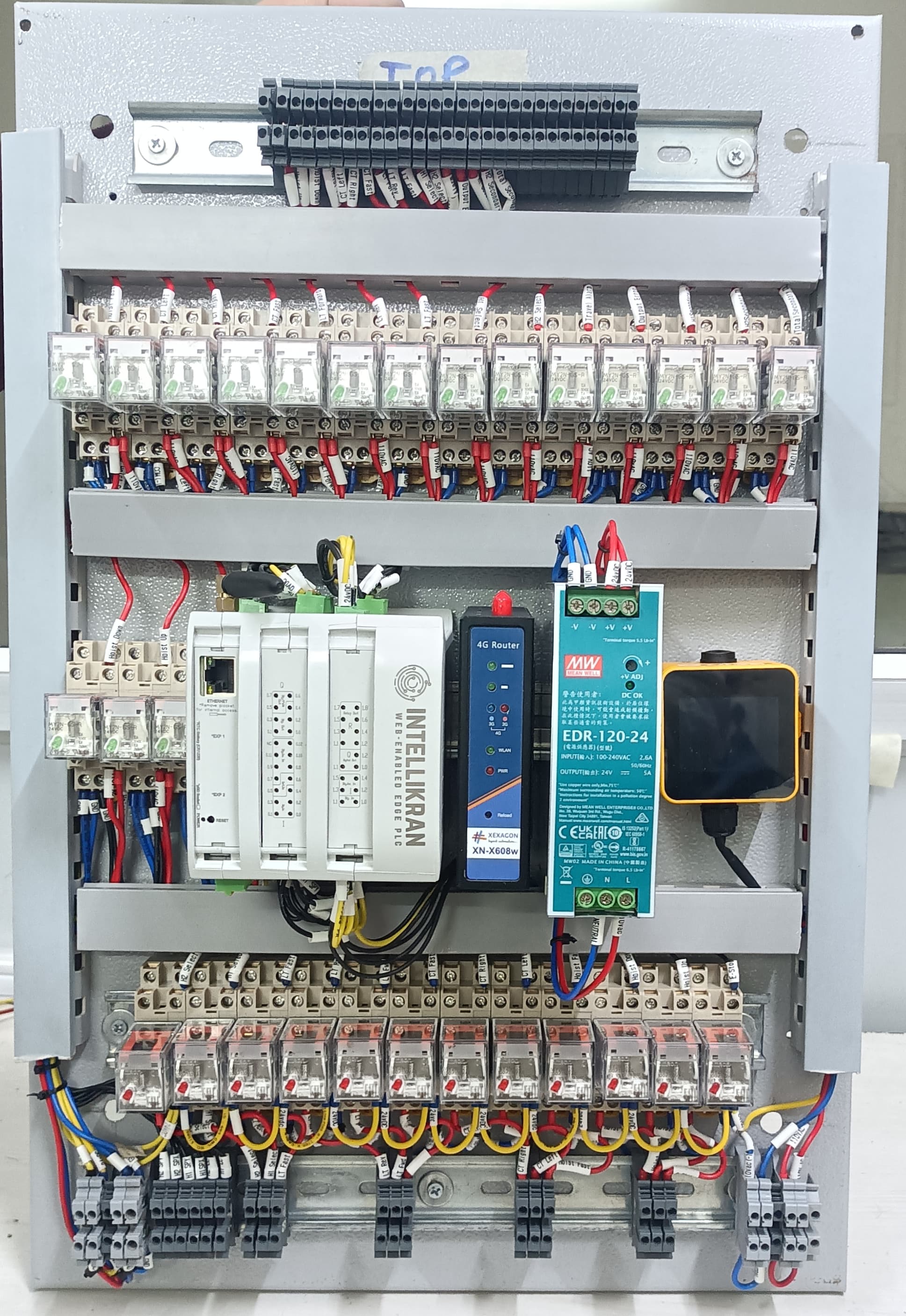

IntelliKran IKS Panel

Dual-core Xtensa LX-6 microprocessor with edge and web processing on separate cores

Built-in web server with dashboards for monitoring, configuration, and analytics

19 digital inputs, 8 relay outputs, 11 MOSFET outputs, and 10 shared analog inputs

Integrated Wi-Fi, Ethernet, SD Card with optional LTE NB-IoT, LoRa, GPS, and CAN Bus

Processor

Xtensa Dual Core 32-bit LX-6 (80-240 MHz)

Connectivity

Wi-Fi, Ethernet, RS232/485, I2C, SPI, UART, SD

Safety

Watchdogs, E-stop interrupt, start interlock

Operating Range

12-24VDC supply, 0-60C operation

Available Models

IntelliKran PLC Variants

Choose the right IntelliKran PLC for your application — from compact crane controllers to full-scale industrial automation platforms.

IntelliKran Mini

Entry

Compact dual-core controller with built-in WiFi and BLE — ideal for lightweight crane monitoring and basic control.

Total I/O14 (9 in / 5 out)
Digital Inputs7 Digital
Analog Inputs2 Analog-Digital
Digital Outputs4 Digital
Relay Outputs1 Relay
CommunicationsEthernet, WiFi, BLE, RS485, I2C
Optional ModulesNB-IoT, 4G, LoRa, GPRS
Supply Voltage12–24 VDC
Operating Temp-20°C to 60°C
Request Quote

IntelliKran Mid

Standard

Versatile mid-range controller with expanded I/O for multi-sensor crane monitoring.

Total I/O21 (13 in / 8 out)
Digital Inputs7 isolated (2 with interrupts)
Analog Inputs6 Analog-Digital
Digital Outputs5 isolated
Analog Outputs3 Digital/PWM/Analog
CommunicationsEthernet, RS485, RS232, SPI, I2C, RTC
Supply Voltage12–24 VDC
Operating Temp-20°C to 60°C
Request Quote

IntelliKran Max

Pro

Full-featured platform for complex multi-crane automation, load monitoring, and advanced data acquisition.

Total I/O38 (19 in / 19 out)
Digital Inputs9 isolated (4 with interrupts)
Analog Inputs10 Analog-Digital
Relay Outputs8 Relay
Digital/Analog Outputs5 isolated + 6 PWM/Analog
CommunicationsEthernet, RS485, RS232, 2× Serial, SPI, I2C, RTC
Supply Voltage12–24 VDC
Operating Temp-20°C to 60°C
Request Quote

Core Operations

  • Load measurement, protection, and summation
  • Slack rope and SidePull measurement and protection
  • Secondary overload protection
  • Operational trip event data logging
  • Motor CDF, starts per hour, and violations monitoring
  • Crane DWP and hoist SWP calculations as per ISO 12482
  • Operation/work cycle counters and admin-user access control
  • Backup/restore, online monitoring, and parameterization

Safety Features

  • Software watchdog timer
  • Hardware watchdog timer (for critical machines)
  • E-stop via interrupt for fast emergency response
  • Programming mode timeout to return PLC to regular mode
  • Start interlock mechanism
  • Protected inputs and outputs

Certifications & Compliance

  • CE Statement of Conformity
  • REACH Regulation (EC) No. 1907/2006
  • Electromagnetic Compatibility Directive
  • EN 61131-2:2007
  • EN 61000-6-4:2007
  • EN 61000-6-2:2005
  • RoHS EU 2011/65/EU and 2015/863/EU
