Operator Interface

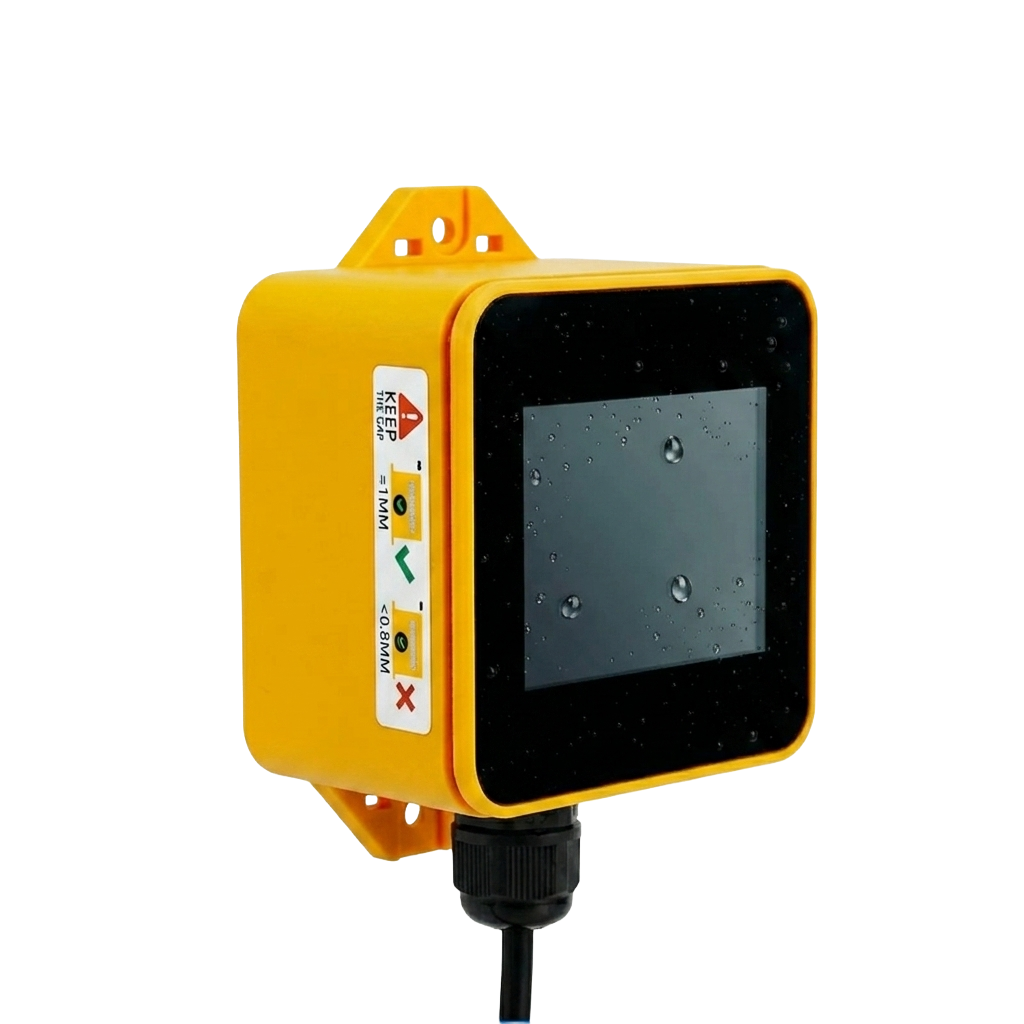

HMI 2 Inch
A compact, rugged industrial HMI designed for edge control and visibility. It combines a bright 2-inch touchscreen, flexible power input options, and field-friendly connectivity in a sealed housing suited for demanding machine environments.
2.0"
Display
320x240
Resolution
6-24V
Field Input
RS-485
Bus Support
Features
Built for Compact Industrial HMIs
2.0-inch IPS Display
Full-color 320 x 240 display with high readability and up to 853 nits brightness for clear panel visualization.
Capacitive Touch
Responsive touch interface enables fast operator interaction for status views, commands, and parameter pages.
Flexible Power Inputs
Supports USB 5V (500mA) and field-side 6-24V input through the RS-485 power interface.
Built-In Storage Stack
Includes 16MB flash, 8MB PSRAM, 520KB SRAM, and a microSD slot supporting cards up to 16GB.
Rugged Enclosure
Dust and splash resistant housing with UV-resistant plastic body for stable operation in industrial environments.
Multi-Interface Expansion
USB Type-C and 4x HY2.0-4P ports supporting RS-485, I2C, GPIO, and UART integration.
Applications
Where It Fits
Machine panel HMI for compact control cabinets
Industrial data acquisition nodes with local display
Timer and sequence control interfaces
Crane accessory control and diagnostics dashboards
Edge operator interface for maintenance workflows
Remote-status terminal for PLC-adjacent installations
Technical Data
Specifications
| Display | 2.0-inch IPS, 320 x 240, up to 853 nits |
| Touch | Capacitive touch panel |
| Input Voltage | USB 5V@500mA / RS-485 interface 6-24V@1A |
| Interfaces | USB Type-C x1, HY2.0-4P x4 (RS-485, I2C, GPIO, UART) |
| Flash | 16MB |
| PSRAM | 8MB |
| SRAM | 520KB |
| microSD | Up to 16GB |
| Audio | 1W speaker with 16-bit I2S amplifier |
| RTC | Built-in RTC with timer wake-up support |
| Power Management | Integrated PMU |
| Casing Material | UV-resistant plastic |
| Ingress Note | Dust/splash resistant design (not intended for immersion) |
| Dimensions | 76.0 x 58.0 x 41.6 mm |
| Weight | 117.5 g |
Get Started
Need a compact HMI for your control panel?
Share your panel requirements and we will recommend the best integration setup for this 2-inch HMI accessory.
